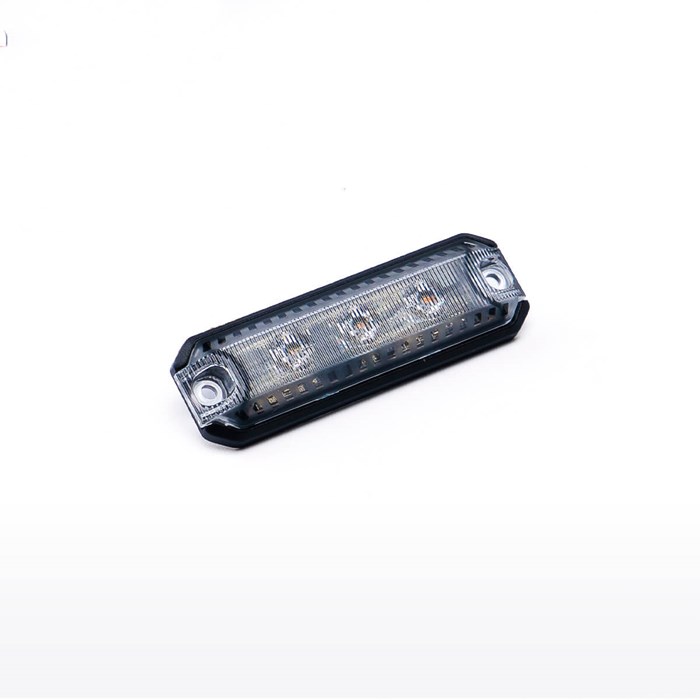

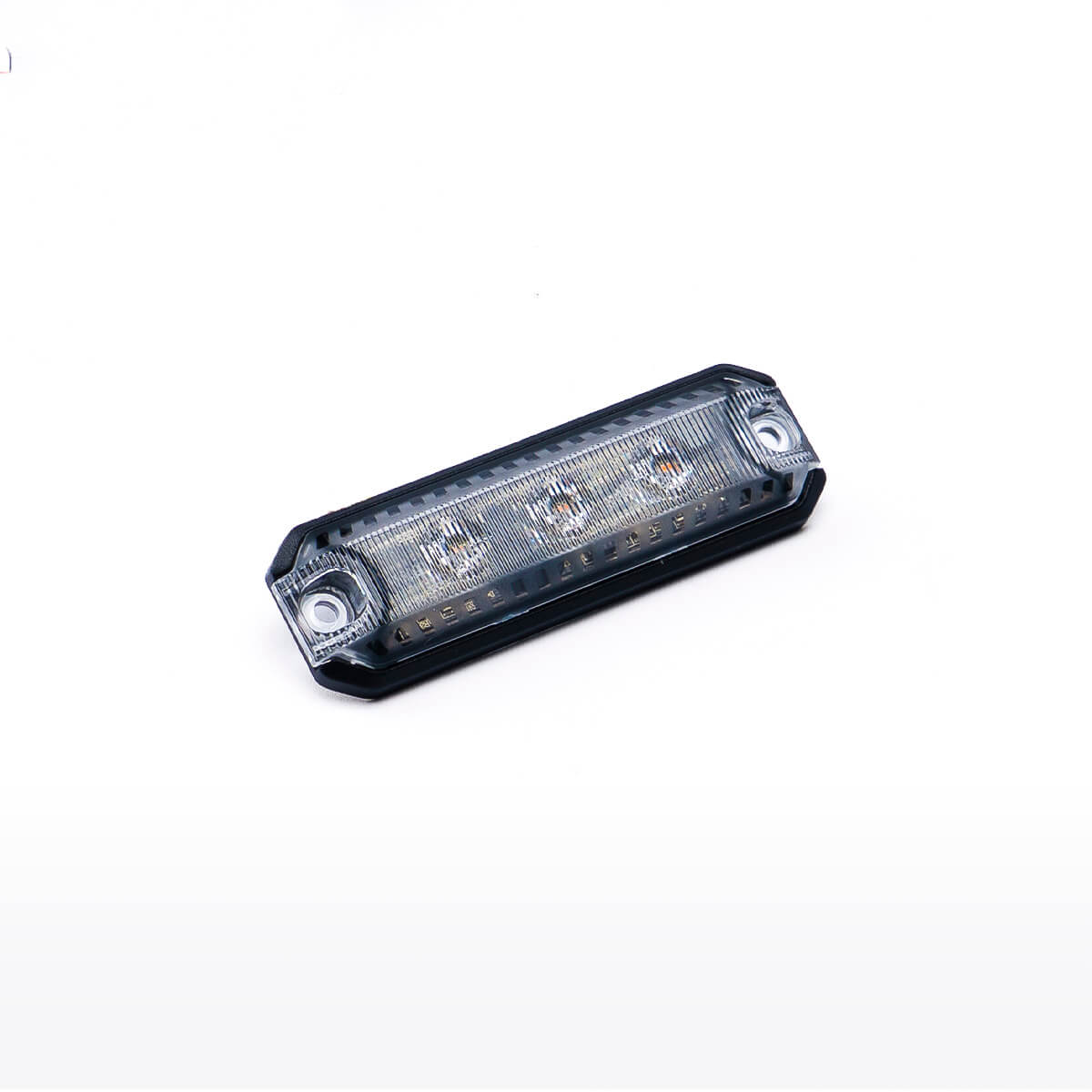

A high-quality, directional LED warning light, designed for installations where space is limited. With a height of only 10 mm and a width of just 88 mm, this is a highly compact solution for service and work vehicles.

The narrow width allows installation in confined areas where larger units will not fit, for example on restricted mounting surfaces around body components or other space-limited areas.

The lamp’s aluminium base ensures efficient heat dissipation and long service life, while the impact-resistant polycarbonate lens provides high durability in demanding environments.

The directional light output delivers clear warning signalling and is suitable for front, rear or side mounting on the vehicle.

Advantages

• Only 10 mm installation height
• Only 88 mm wide
• Ideal for confined mounting areas
• Aluminium base for efficient cooling
• Impact-resistant polycarbonate lens
• Directional and clearly defined light output

Specifications

Voltage: 10-30 Vdc
Power consumption: @ 12V ~ 0.26-0.38A (depending on flash pattern)
LED: 3 pcs LMP LED
LED color: Amber
Lens color: White
Flash patterns: 13
IP rating: IP67
Certification: ECE R65 Class 1, ECE R10, CE/UKCA
